Strideway System

Name: Strideway System
Brand: Tekscan
SKU: TSC
Availability: InStock

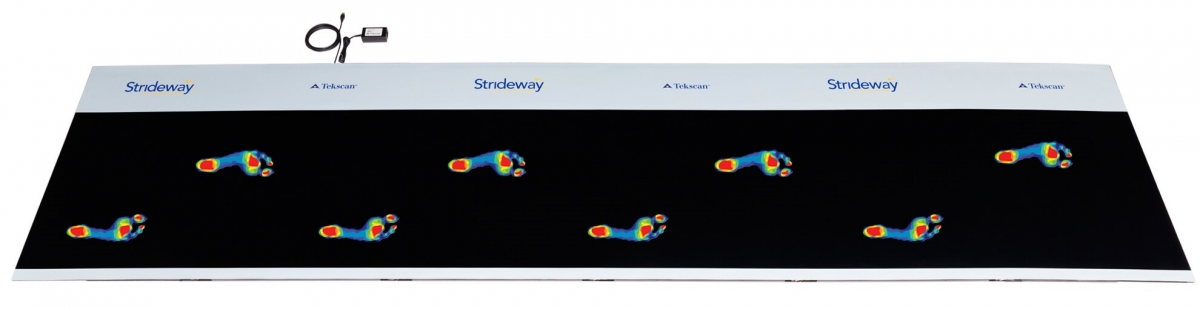

The Strideway System is the industry's first fully modular pressure measurement walkway for human gait analysis. It captures comprehensive objective data—including force, plantar pressure, temporal, and spatial parameters—in a portable, low-profile platform that can be customized in length to fit any clinical or research space.

Tekscan

Strideway System

Loading content...

Key Features

✓

Truly Modular Design: Tiles connect easily to extend the walkway length, allowing for future expansion or adaptation to smaller rooms.

✓

Automated Gait Reports: Instantly calculates temporal-spatial parameters (velocity, cadence, step length) and generates symmetry tables without manual data crunching.

✓

Safety First: The extra-wide, low-profile platform reduces the risk of tripping and accommodates patients with wide stances or assistive devices.

✓

Multi-Step Capture: Records multiple sequential footsteps in a single pass, providing a more accurate representation of natural gait than single-step platforms.

✓

Lab Integration: Designed to synchronize seamlessly with external equipment such as EMG systems and Motion Capture cameras for holistic biomechanical analysis.

✓

Quick Assembly: The system enables rapid setup and breakdown, complete with a wheeled storage case for portability between clinics.

Technical Specifications

Power100-240 VAC.

ConnectivityUSB 2.0 (Single cable connection).

ConfigurationModular Tiles (Connectable to desired length).

Sampling RateStandard: Up to 500 Hz and High Res: Up to 250 Hz.

Pressure Range40, 75, 125 PSI (276, 518, 862 kPa).

System LengthsScalable from ~1.3m (Strideway 2) to ~5.2m (Strideway 8) active area.

Sensor TechnologyResistive.

Resolution OptionsStandard (Model 3160): 0.97 sensels/cm² (6.25 sensels/in²) – Best for Adults and High (Model 3164): 3.88 sensels/cm² (25.0 sensels/in²) – Best for Pediatrics.

Platform Dimensions (Per Tile)Active Area Width: 65.3 cm (25.7 in), Total Width (with bevel): 91.2 cm (35.9 in) and Platform Height: 1.5 cm (0.59 in) – Low profile.

About the Manufacturer

Tekscan’s world-leading tactile force and pressure measurement systems provide ultra-thin sensors and PhD-led expert consultation to transform complex pressure mapping into actionable clinical and research insights.

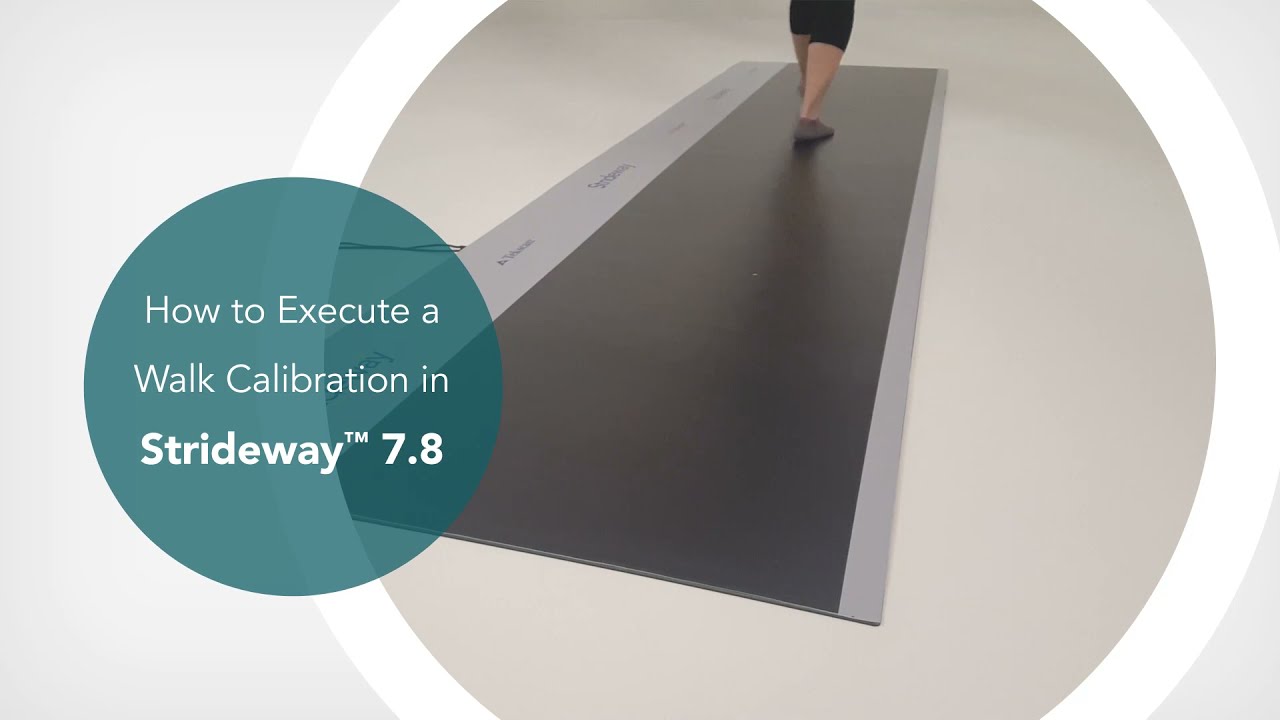

Videos

Strideway System

More Than a Distributor: Your Strategic Scientific Partner

Backed by PhDs and domain experts, we go beyond distribution - offering consultation, training, and long-term support to drive clinical impact.

PhD-Led Expertise

PhD-Led Expertise We don't just send quotes; we design solutions. Our team of PhDs and domain experts ensures your complex multi-modal setups are configured for success.

3,000+ Global Installations

3,000+ Global Installations Execution you can trust. With a presence in 16+ countries, we handle everything from complex logistics to on-site calibration and compliance.

Lifetime Application Support

Lifetime Application Support Our relationship begins after the sale. We provide comprehensive training, troubleshooting, and maintenance to keep your lab operational year-round.
