Versatile Bio (Biosignal Amplifier)

Name: Versatile Bio (Biosignal Amplifier)
Brand: Bitbrain
SKU: VERSBIO
Availability: InStock

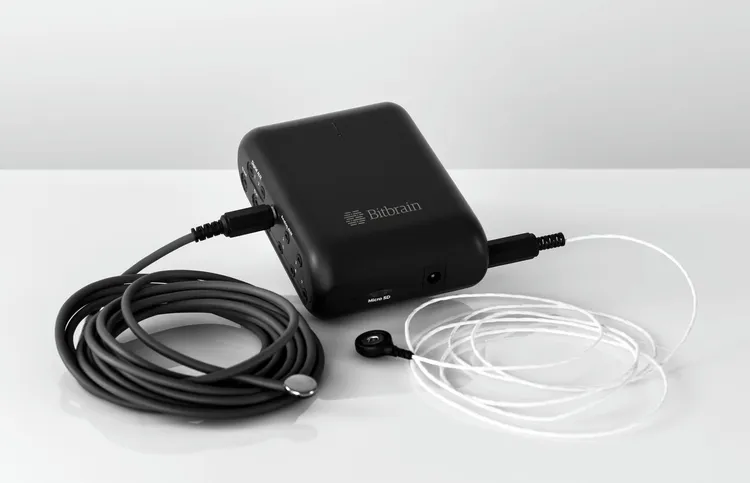

The Versatile Bio by Bitbrain is an ultra-lightweight (172g), high-performance, mobile biosignal amplifier designed to simultaneously monitor up to 35 physiological variables in real-time. By recording EXG, GSR, RESP, TEMP, and EMG with millisecond synchronization and wireless Bluetooth streaming, it offers researchers total freedom of movement for out-of-the-lab human behavior studies.

Bitbrain

Loading content...

Key Features

✓

Extreme Multi-Sensory Monitoring: A single, synchronized hub capable of capturing EXG, autonomic nervous system metrics (GSR, Respiration, Temp), and precise kinesthetic movement (IMUs, EMG) simultaneously.

✓

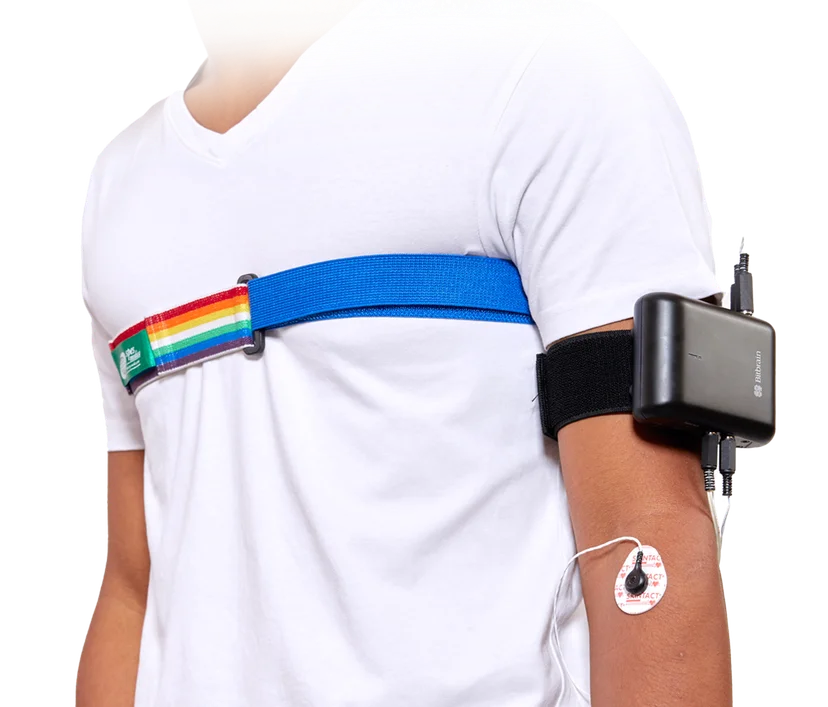

Maximum Wearable Mobility: The ultralight amplifier can be strapped to a participant's waist or arm, removing the restrictive cables of standard lab equipment and allowing for highly ecological, real-world behavioral research.

✓

Active Artifact Shielding: Features an optimized DRL circuit and active shielding, protecting sensitive electrical biosignals from environmental electromagnetic noise and physical movement artifacts.

✓

Dual Operation Modes: Provides immediate, real-time physiological feedback via Bluetooth streaming, or completely untethered data logging directly to the internal SD card.

✓

Simplified Sensor Setup: Easily scalable architecture where sensors plug directly into the amplifier intuitively, with software providing visual cues to ensure a quality setup before recording.

✓

Seamless Multimodal Sync: Fully compatible with Bitbrain's Human Behaviour Research Lab platform, allowing the Versatile Bio to be perfectly synchronized with external technologies like EEG, Eye-trackers, and VR headsets.

Technical Specifications

Weight172g.

Autonomy> 8 hours of continuous operation.

BandwidthDC – 100Hz (3rd-order LPF).

Data BackupRemovable MicroSD card (Max 8GB, class ≥10), exports in CSV format.

Power SupplyRechargeable LiPo battery (< 3h charging time).

Product TypeMobile Real-Time Biosignal Amplifier.

Base Channels21+ channels (extensible up to 35 simultaneous physiological variables).

Sensor Inputs9x Bipolar ExG + GND, 6x Auxiliary analog inputs (GSR, RESP, TEMP, BVP, etc.), 2x Auxiliary digital inputs for IMUs (Supports up to 2 HUBs in streaming mode to multiplex up to 8 IMUs per input) and 1x Digital input (3 bits) & 1x Digital output (1 bit).

CertificationsCE and CB, with EN 60950, EN 55032, EN 55024.

Data TransmissionBluetooth 2.1 + EDR (up to 10 meters in direct sight).

Integrated SensorsBuilt-in 9-axis IMU (accelerometer, gyroscope, and magnetometer).

Input Range & NoiseBipolar ExG: ± 420 mV, < 4 µVRMS (0.5 – 30Hz) @ 256Hz and Analog AUX: ± 2.5 V, < 10 µVRMS (0.5 – 30Hz) @ 256Hz.

CMRR / Input Impedance> 100 dB @ 50Hz, > 50 GΩ.

Software CompatibilityIncludes Bitbrain Software Kit (SDK in C/C++); LSL-compatible for third-party real-time I/O (MATLAB, Python, BCI2000, OpenVibe, NeuroPype); compatible with data processing tools like EEGLAB, FieldTrip, and Python MNE.

Sampling Rate / Resolution256 SPS at 24 bits.

About the Manufacturer

Bitbrain is a world-reference neurotechnology company merging neuroscience, artificial intelligence, and hardware to develop high-tech EEG brain-sensing devices and practical software solutions for real-world research and health applications.

Videos

Versatile Bio

More Than a Distributor: Your Strategic Scientific Partner

Backed by PhDs and domain experts, we go beyond distribution - offering consultation, training, and long-term support to drive clinical impact.

PhD-Led Expertise

PhD-Led Expertise We don't just send quotes; we design solutions. Our team of PhDs and domain experts ensures your complex multi-modal setups are configured for success.

3,000+ Global Installations

3,000+ Global Installations Execution you can trust. With a presence in 16+ countries, we handle everything from complex logistics to on-site calibration and compliance.

Lifetime Application Support

Lifetime Application Support Our relationship begins after the sale. We provide comprehensive training, troubleshooting, and maintenance to keep your lab operational year-round.

Ready to configure your lab?
