VisualSystem HD

Name: VisualSystem HD
Brand: NordicNeuroLab
SKU: VISYST
Availability: InStock

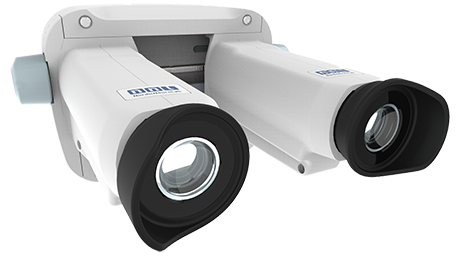

The NordicNeuroLab VisualSystem HD is a sophisticated, high-definition visual stimulation system designed for 1.5T and 3.0T fMRI. Featuring dual OLED displays, an 80% increased field of view, built-in eye-tracking, and stereoscopic 3D capabilities, it immerses patients in brilliant, high-quality graphics for advanced clinical mapping and neuro-research.

NordicNeuroLab

VisualSystem HD

Loading content...

Key Features

✓

Immersive Field of View: Features an 80% larger FOV compared to previous models, completely immersing the patient in the visual paradigm and reducing claustrophobia.

✓

Stereoscopic 3D Imaging: Dual independent OLEDs allow for the presentation of real 3D graphics, opening new possibilities for spatial and maze-based fMRI research.

✓

Built-in Eye Tracking: Continuously track and record patient gaze and pupil metrics to verify task engagement, wakefulness, and compliance during cognitive studies.

✓

Universal Patient Fit: Easily adjustable IPD and built-in diopter correction ensure perfectly focused, comfortable viewing for almost any patient, from pediatric to geriatric.

✓

Seamless Head Coil Integration: Ergonomic, adjustable arm and custom adapters allow for quick, precise mounting onto standard and high-density head coils.

✓

Control Room Interface: The system includes a Control Room Interface (CRI) unit managing HDMI inputs, eye-tracking video outputs, and USB control for flawless integration with stimulus software like nordicAktiva.

Technical Specifications

ApprovalsIEC60601-1, IEC 60601-1-2 (EMC), IEC-62471 (Photobiological/LED safety), FDA 510(k) Cleared.

Power Supply90-240 VAC, 50/60Hz.

Product TypeMR-Compatible High-Definition Visual Stimulation Goggles.

Contrast Ratio>1000:1.

3D CapabilitiesIndependent video sources for each OLED enabling stereoscopic 3D imaging (optional).

Eye Tracking TypeVideo-based Pupil Centre Corneal Reflection (PCCR). Binocular (two independent streams).

White Illuminance>150 cd/m².

Display TechnologyDual Full HD OLED (one independent display for each eye).

Mounting InterfaceAdjustable fixation mechanism supporting a wide range of head coils (Siemens, GE, etc.).

Native Resolutions1920 × 1200 @ 60Hz, 71Hz (16:10 WUXGA), 1920 × 1080 @ 60Hz, 80Hz (16:9 FHD) and 1600 × 1200 @ 60Hz, 85Hz (4:3 UXGA).

Optical AdjustmentsInter Pupil Distance (IPD): 44 to 75 mm and Diopter Correction: -8 to +5.

Scanner CompatibilitySafely operates in 1.5 Tesla and 3.0 Tesla MR environments.

Eye Tracking Frame Rate60 fps.

Eye Tracking Resolution640 x 480 (progressive).

Eye Tracking Field of View25mm ocular plane horizontal.

About the Manufacturer

NordicNeuroLab is a global leader in functional MRI, providing integrated hardware and software turnkey solutions that simplify and standardize fMRI workflows for clinical and research environments.

Videos

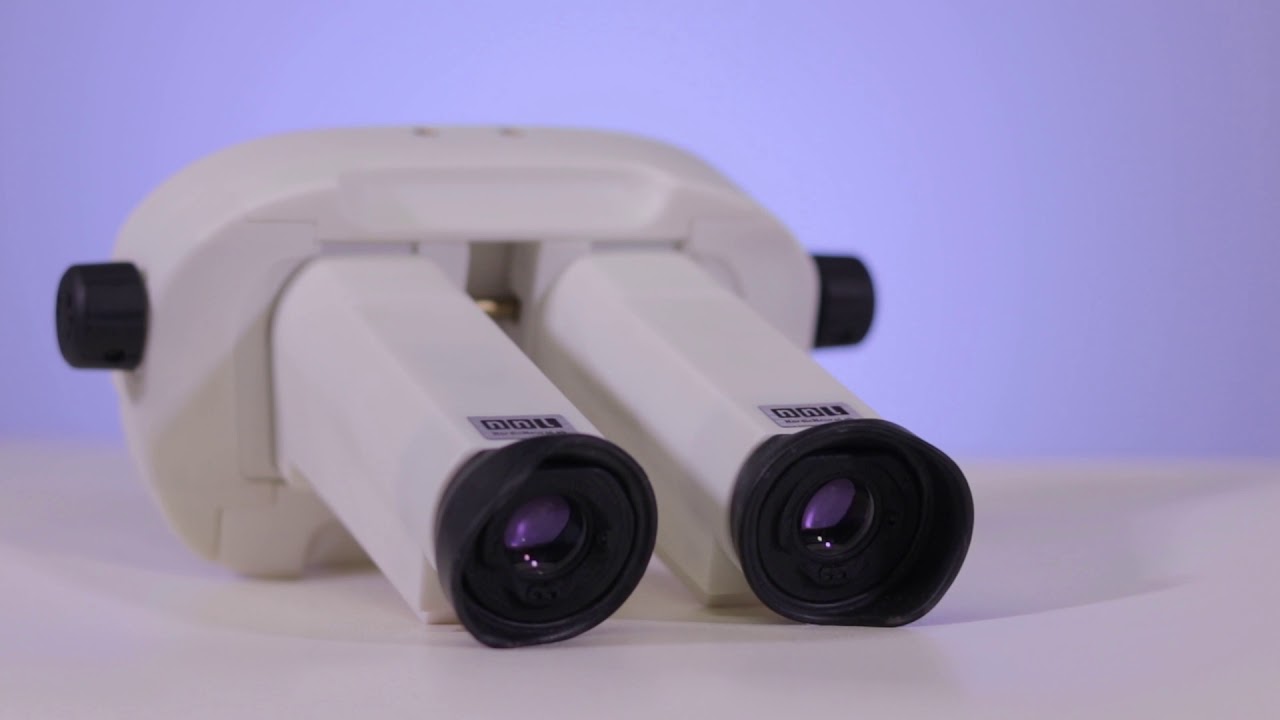

The VisualSystem HD - Virtual Reality for functional MRI
