Noraxon

Noraxon Biomechanical Systems

Noraxon U.S.A. Inc. offers advanced tethered and wireless electromyography (EMG) equipment, data analysis software, and biomechanical sensors for clinical, research, ergonomic, and sports medicine applications.

Ultium-EMG

Noraxon's Ultium-EMG sensor system is a multi-modal, wireless device that delivers unprecedented data integrity and evaluation capability. The system features a new “SmartLeads”, which transforms the EMG device into an intelligent sensor for virtually any type of biometric and physiological data, from any type of hardware.

• Up to 4,000 Hz EMG sampling rate
• 24-bit internal sampling resolution
• Integrated 16g accelerometer (16-bit resolution)
• Proprietary radio frequency hopping protocol
• Software controlled digital filtering
• Internal memory for >8 hours of data logging
• Lossless onboard data recovery via wireless or dock
• Up to 32 analog output channels
• Interchangeable lead system for multi-sensor capture
• Integrated IMU chip

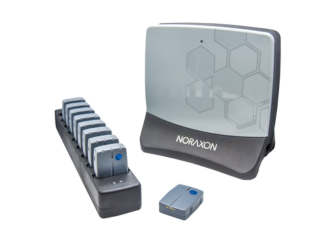

Core EMG

Streamlined EMG data collection with lightweight, wireless sensors that directly transmit high-fidelity signals. Capture data at 2,000 Hz with embedded memory for over 4 hours. Seamlessly expandable up to 16 channels with Ultium receiver and charger combo.

• Wireless sensors (no lead wires or disposables)
• 2,000 Hz capture rate with 4+ hours battery
• 1–16 channel support
• Embedded memory ensures lossless data
• Seamless integration with Noraxon’s platform
• Compact and user-friendly design

Ultium Motion

A next-gen inertial motion capture system with advanced sensor design for high-velocity and high-impact conditions. Integrated with Noraxon’s myoRESEARCH software via Ultium receiver.

• Up to 4,000 Hz sampling rate
• Battery runtime > 10 Hours
• Recharge time < 4 Hours
• Wireless range up to 40m
• Sensor weight < 0.67oz (19g)
• Advanced sensor fusion algorithms
• Rotational velocities up to 7000 deg/s
• Accelerations up to 200 g
• Lossless onboard data recovery

Ultium PORTABLE LAB

All-in-one portable biomechanics lab providing real-time 3D gait analysis and objective movement insights. Analyze locomotion, stride mechanics, plantar pressure, and more with a compact, user-friendly system.

• Portable for use across labs, clinics, or outdoor settings
• Improves access to broader patient groups
• User-friendly software with GAIT report generation
• Real-time marker visibility feedback
• Quick setup and minimal calibration time
• USFDA and CE approved
• Technician-friendly learning curve
